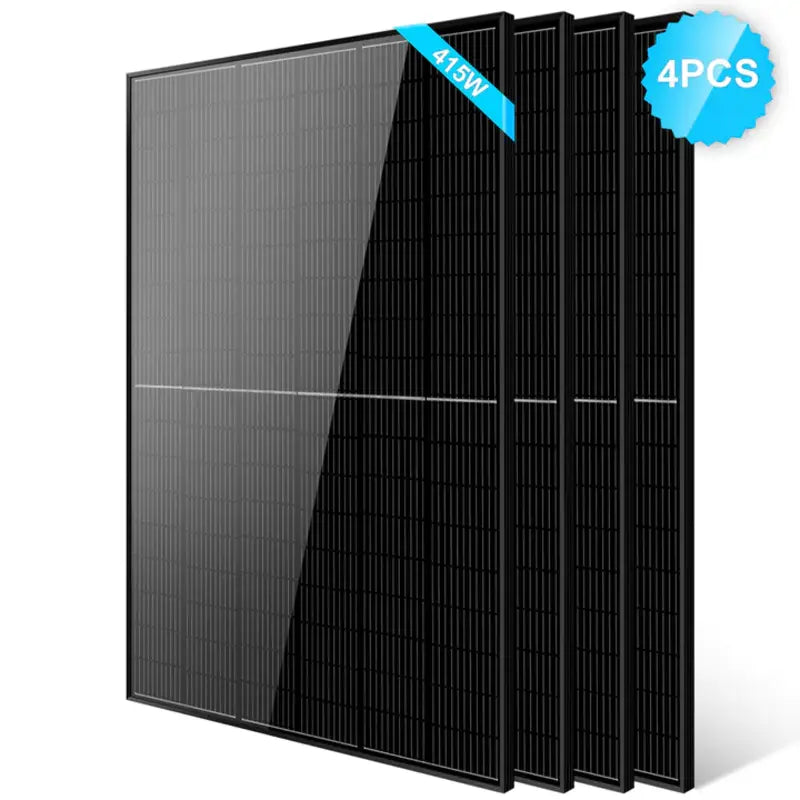

Sun Gold Power | SG-415WM | 415W Mono Black PERC Panel | IP68
415W Mono PERC Half-Cut Solar Panel for Enhanced Power - Manual
Discover unparalleled power generation with the Sun Gold Power 415W Mono PERC Half-Cut Solar Panel, where cutting-edge technology meets peak efficiency. With an impressive module efficiency of up to 21.25%, this panel outperforms traditional options, providing more energy per square foot and making it a prime choice for any solar energy project. Utilizing Mono PERC Half-Cut Technology, it offers superior shade tolerance and enhanced output, thanks to its innovative cell design and wiring system.
This 415W panel is exceptionally versatile, suited for off-grid, on-grid, and hybrid solar systems alike. Whether you're powering an RV, a tiny house, a marine vessel, or a commercial building, it's engineered to reduce power consumption significantly, offering substantial savings over time. Equipped with a 10-year workmanship warranty and a 25-year linear performance warranty, its durability and performance are assured.
Designed for resilience, the panel features an IP68-rated waterproof junction box and connectors, ensuring functionality even after temporary immersion in water. It also withstands heavy snow loads (5400 Pa) and wind pressure (2400 Pa), making it reliable in diverse environmental conditions. The sleek all-black design not only adds aesthetic value but also contributes to the system's efficiency, making it an ideal addition to homes seeking balanced power, improved stability, and reduced electricity costs.
Model Type | SG-415WM |
---|---|
Peak Power (Pmax) | 415W |
Production tolerance | ±3% |
Maximum Power Current (Imp) | 13.13 A |
Maximum Power Voltage (Vmp) | 31.61V |
Short Circuit Current (Isc) | 13.79A |
Open Circuit Voltage (Voc) | 38.82V |
Maximum System Voltage | 1500V |
Wind Resistance | 2400Pa |
Output Cables | 12 AWG (1ft per cable) |
Number of Cells | 108(6*18) |
Cell Type | Mono 182*91mm |
Certifications | CE TUV |
Product Weight | 45.1lbs |
Product Dimension | 67.9*44.7*1.4inch |
Package Weight | 100.5lbs(2PCS) |
Package Dimension | 70.1*47.2*3.9inch(2PCS) |
Performance | 5 year 95% output warranty 10 year 90% output warranty 25 year80% output warranty |
Material and workmanship warranty | 25 years Linear Product Workmanship Warranty and 10 years workmanship warranty. |
