Rich Solar 8000W 48V 120/240VAC Cabin Kit for 2-3 Bedrooms - The Ultimate Off-Grid Solar System
Unleash the full potential of solar power with the Rich Solar 8000W 48V Cabin Kit, meticulously designed for two to three-bedroom settings. Ideal for RVs, tiny homes, and any off-grid adventures, this kit is your gateway to energy independence. Every component is chosen for its synergy and performance, from the robust 6500W Off-Grid Hybrid Inverters to the high-capacity Lithium Batteries, ensuring a seamless and powerful energy solution.
The kit includes top-of-the-line 335W MEGA Solar Panels that capture the sun's energy with maximum efficiency. The state-of-the-art Alpha 5 Powerwall Batteries store that energy, ready to meet your demands at a moment's notice. With comprehensive overcharge, temperature, and balance monitoring, your system's safety and longevity are guaranteed.
Customize your setup with flexible mounting options and enjoy the ease of a pre-configured busbar system for simple stacking. Whether you're bracing for cold climates with an easy-to-add DIN rail thermostat or utilizing the passive cooling vent for warmer regions, this kit adapts to your environment. Expand your system up to 81kWh with ease, thanks to the scalable design.

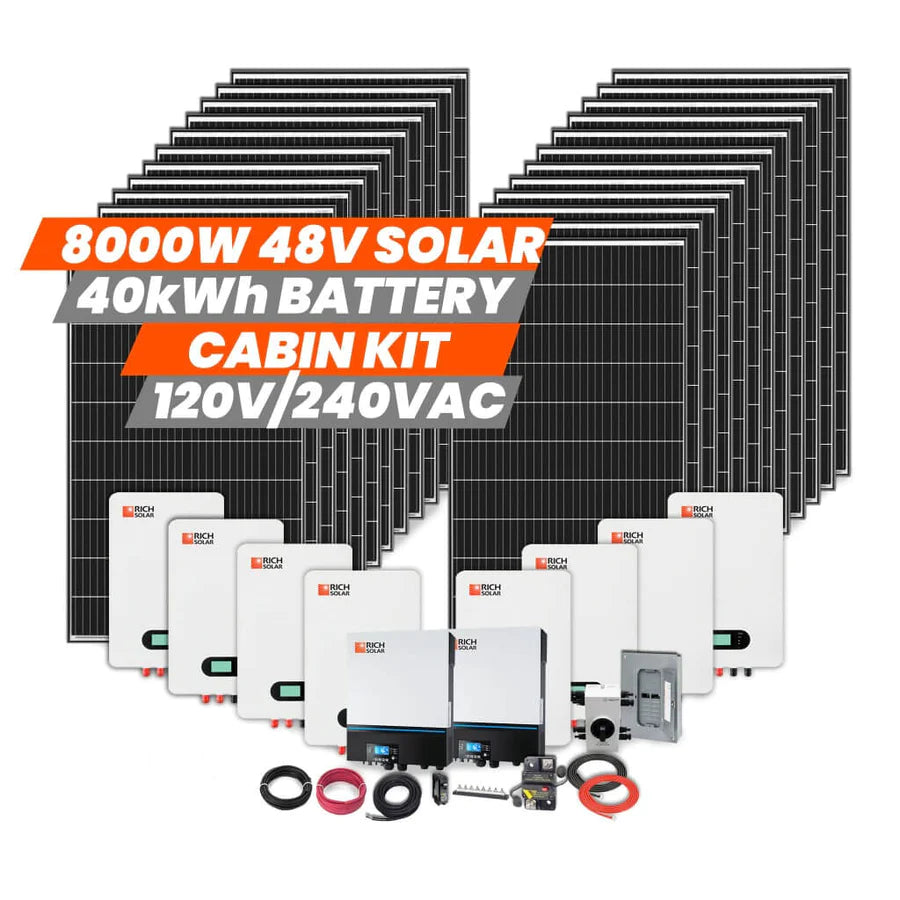

This kit includes:
🗹 2x 6500W 48V Off-Grid Hybrid Inverter (RS-H6548)
🗹 24x MEGA 335W Solar Panel (RS-M335)
🗹 8x 4.8KW 48V Lithium Battery Alpha 5 (RS-B48100)
🗹 9x 10AWG 25FT Extension Cable (RS-325102)
🗹 3x Y Branch Parallel Adapters (RS-Y2)
🗹 48x Z-Brackets (RS-ZB4C)
🗹 2x PV DC Quick Disconnect Switch
🗹 2x 150A 48V Battery Breaker
🗹 4x 8 Stud Bus Bar Set
🗹 2x 2/0 Gauge 2 Foot Battery Cable, Positive
🗹 2x 2/0 Gauge 3 Foot Battery Cable, Positive
🗹 2x 2/0 Gauge 5 Foot Battery Cable, Negative
🗹 8x 2 Gauge 5 Foot Battery Cable Positive
🗹 8x 2 Gauge 5 Foot Battery Cable Negative
🗹 1x 125 Amp 8-Space 16-Circuit Combiner Box
🗹 1x 10 Terminal Ground Kit
🗹 4x 20 Amp Single-Pole Circuit Breaker
🗹 2x 30 Amp Double-Pole Circuit Breaker
🗹 1x 6/3 SOOW Outdoor Durable Cable
- Small Home (1-2 bedrooms): Typically requires less than 5kW. An 8000W system would more than suffice, likely generating a surplus of energy that could be stored or sold back to the grid.
- Medium Home (3-4 bedrooms): Might require between 5kW to 8kW. An 8000W system would be appropriate, potentially covering 100% of energy needs, depending on usage patterns and efficiency.
- Large Home (5+ bedrooms): Could require more than 8kW, especially if there are high energy demands from heating/cooling, appliances, and other electrical devices.
Specifications:
| SKU | RS-H6548 |
|---|---|
| Rated Inverter Power | 6500VA/6500W |
| PARALLEL CAPABILITY | Yes, 6 units |
| INPUT | |
| Voltage: | 120 VAC |
| Selectable Voltage Range | 90-140 VAC (For Computers) |
| 80-140 VAC (For Home Appliances) | |
| Frequency Range | 50 Hz/60 Hz (Auto Sensing) |
| OUTPUT | |
| AC Voltage Regulation (Batt. Mode) | 120VAC ± 5% |
| Surge Power | 15000VA |
| Efficiency (Peak) | 90% ~ 93% |
| Transfer Time | 15 ms (For Personal Computers), 20 ms (For Home Appliances) |
| Waveform | Pure Sine Wave |
| No Load Power Consumption | <70W |
| Optional DC Voltage | 12 VDC ± 5%, 100W |
| Dual Outputs | Yes |
| BATTERY | |
| Battery Voltage | 48 VDC |
| Floating Charge Voltage | 54 VDC |
| Overcharge Protection | 66 VDC |
| SOLAR CHARGER & AC CHARGER | |
| Solar Charger Type | MPPT |
| Maximum PV Array Power | 8000W (4000W x 2) |
| MPPT Operating Voltage Range | 90 ~ 230 VDC |
| Maximum PV Array Open Circuit Voltage | 250 VDC |
| Maximum Solar Charge Current | 120A |
| Maximum AC Charge Current | 120A |
| Maximum Charge Current | 120A |
| PHYSICAL | |
| Dimension(D X W X H) | 5.8 x 17.0 x 21.8 in |
| Net Weight: | 40.6 lb |
| Communication Interface | USB/RS232/RS485/WiFi/Dry-contact |
| OPERATING ENVIRONMENT | |
| Humidity | 5% to 95% Relative Humidity (Non-condensing) |
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -15°C to 60°C |
| STANDARD | |
| Compliance Safety | UL |
| SKU | RS-M335 |
|---|---|
| Maximum Power(Pmax) | 335W |
| Maximum Power Voltage(Vmp | 34.1V |
| Maximum Power Current(Imp) | 9.85A |
| Open Circuit Voltage(Voc) | 41.6V |
| Short Circuit Current(Isc) | 10.4A |
| Maximum System Voltage(Vmax) | 1000VDC |
| Temperature Range | -40°F ~ 194°F |
| Max Series Fuse Rating | 20A |
| Weight | 39.3 lb |
| Dimensions | 65.6 x 39.4 x 1.4 in |
| Electrical Specifications | |
|---|---|
| Nominal Voltage | 48V |
| Nominal Capacity(at .5C, 77°F) | 100Ah |
| Minimum Capacity (at .5C, 77°F) | 95Ah |
| Expected Cycle Life | >6000 cycles w/1C charge and discharge rate, at 77°F, 80% DOD |
| Operating Specifications | |
| Charge Method | Smart charger, constant current, constant voltage |
| Operating Voltage | 48 V |
| Capacity | 100 Ah |
| Energy | 5000 Watt Hours |
| Charge Voltage Range (Max 52.5V) | 52.0 -52.5V |
| Continuous Charge Current | 5A |
| Continuous Discharge Current | 100A |
| Over Voltage Shutdown | 52.5 +/-0.2V |
| Discharge Cut-off Voltage | 42V =/- 0.5V |
| Self Discharge (stored at 50% SOC) | <3%/month |
| Waterproof | IP65 |
| Temperature Performance | |
| Charge Temperature | 32° F to 140° F |
| Discharge Temperature | -4° F to 140° F |
| Storage Temperature | -4° F to 140° F |
| BMS High Temperature Cut-off | 149°F |
| BMS Low Temperature Cut-off | 32°F |
| Physical Specifications | |
| Battery Dimensions | 23 1/4″L x 14 7/8″W x 6 1/8″H |
| Weight | 100 lb |
| Group Size | 15 |
| Battery post size | 5/16″ |
| BMS Operation | |
| Over Charge Protection | |
| Over charge detection voltage | 3.9 +/- 0.05V |
| Over charge detection delay time | 0.96 – 1.4s |
| Over charge release voltage | 3.80 +/-0.05V |
| Maximum charge voltage | 3.65 +/-0.05V |
| Over Discharge Protection | |
| Over discharge detection voltage | 2.0V +/- 0.05V |
| Over discharge detection delay time | 115-173ms |
| Over discharge release voltage | 2.3V +/- 0.10V |
| Over Current Protection Over current detection delay time |
9 +/- 2ms |
| Over current release condition | Cut load |
