Rich Solar 6000W 48V 240VAC Cabin Kit for 2 Bedrooms - Off-Grid Solar Powerhouse
Elevate your off-grid experience with Rich Solar's 6000W 48V 240VAC Cabin Kit, the quintessential choice for a two-bedroom retreat. This comprehensive package is designed to bring solar efficiency to tiny homes, RVs, and various off-grid applications, providing you with a robust camper solar setup right out of the box.
The kit includes dual 6500W Off-Grid Hybrid Inverters, ensuring reliable power conversion for your entire cabin. The array of 18 MEGA 335W Solar Panels guarantees optimal solar capture, while the 6 Alpha 5 Lithium Batteries stand ready to store a substantial 28.8 kWh of energy. From the practical Z-Brackets for mounting to the safety-assured disconnect switches and breakers, every component spells durability and convenience.
This kit isn't just about robust technology; it's about smart, adaptable living. With extension cables, bus bars, and a variety of battery cables, setup flexibility is at your fingertips. A 125 Amp Combiner Box, a Terminal Ground Kit, and an array of circuit breakers ensure your system is safely integrated and ready for any electrical demands.
Categorization:
-
Small Cabin or Retreat (1-2 bedrooms, occasional use): A 6000W system could be very generous, potentially covering all energy needs with a surplus. This surplus could be stored in batteries for nighttime use or for days with less sunlight.
-
Medium Cabin (2-3 bedrooms, moderate use): For cabins used more frequently or those with slightly higher energy demands (including moderate use of heating/cooling appliances), a 6000W system could be adequate to nearly adequate, depending on specific usage patterns and the efficiency of appliances.
-
Large Cabin or Full-Time Residence (3+ bedrooms, regular use): For larger cabins used as full-time residences, a 6000W system might cover a significant portion of the energy needs, especially if the occupants are mindful of their energy consumption and the cabin is energy efficient. However, it may not fully suffice for high-demand periods or less efficient cabins.

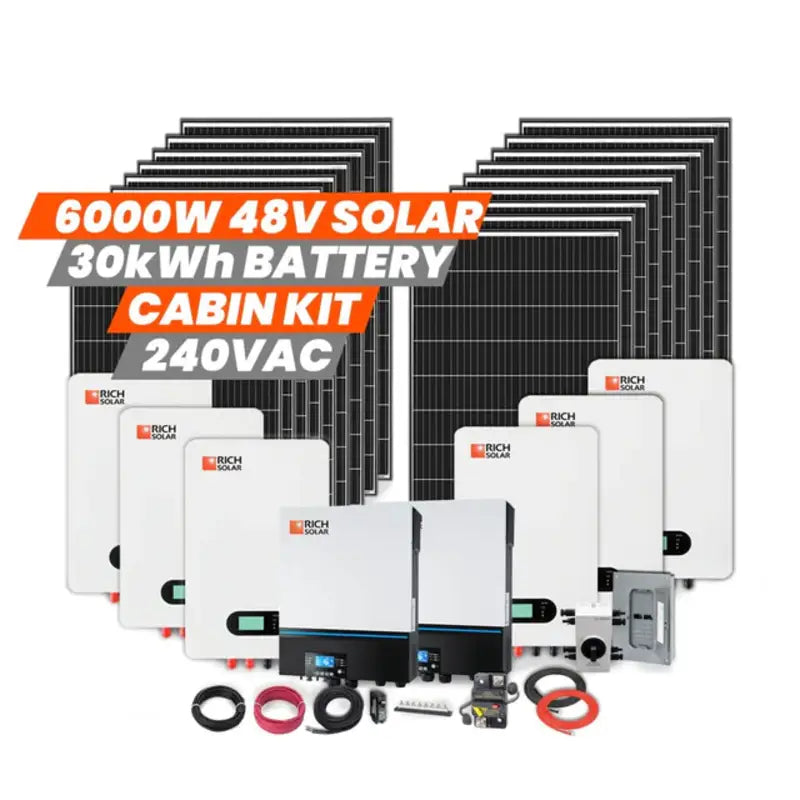

This kit includes:
🗹 2x 6500W 48V Off-Grid Hybrid Inverter (RS-H6548)🗹 18x MEGA 335W Solar Panel (RS-M335)
🗹 6x 4.8KW 48V Lithium Battery Alpha 5 (RS-B48100)
🗹 8x 10AWG 25FT Extension Cable (RS-325102)
🗹 36x Z-Brackets (RS-ZB4C) $467.64
🗹 2x PV DC Quick Disconnect Switch
🗹 2x 150A 48V Battery Breaker
🗹 2x 8 Stud Bus Bar Set
🗹 2x 2/0 Gauge 2 Foot Battery Cable, Positive
🗹 2x 2/0 Gauge 3 Foot Battery Cable, Positive
🗹 2x 2/0 Gauge 5 Foot Battery Cable, Negative
🗹 6x 2 Gauge 5 Foot Battery Cable Positive
🗹 6x 2 Gauge 5 Foot Battery Cable Negative
🗹 1x 125 Amp 8-Space 16-Circuit Combiner Box
🗹 1x 10 Terminal Ground Kit
🗹 4x 20 Amp Single-Pole Circuit Breaker
🗹 2x 30 Amp Double-Pole Circuit Breaker
🗹 1x 6/3 SOOW Outdoor Durable Cable
| SKU | RS-H6548 |
|---|---|
| Rated Inverter Power | 6500VA/6500W |
| PARALLEL CAPABILITY | Yes, 6 units |
| INPUT | |
| Voltage: | 120 VAC |
| Selectable Voltage Range | 90-140 VAC (For Computers) |
| 80-140 VAC (For Home Appliances) | |
| Frequency Range | 50 Hz/60 Hz (Auto Sensing) |
| OUTPUT | |
| AC Voltage Regulation (Batt. Mode) | 120VAC ± 5% |
| Surge Power | 15000VA |
| Efficiency (Peak) | 90% ~ 93% |
| Transfer Time | 15 ms (For Personal Computers), 20 ms (For Home Appliances) |
| Waveform | Pure Sine Wave |
| No Load Power Consumption | <70W |
| Optional DC Voltage | 12 VDC ± 5%, 100W |
| Dual Outputs | Yes |
| BATTERY | |
| Battery Voltage | 48 VDC |
| Floating Charge Voltage | 54 VDC |
| Overcharge Protection | 66 VDC |
| SOLAR CHARGER & AC CHARGER | |
| Solar Charger Type | MPPT |
| Maximum PV Array Power | 8000W (4000W x 2) |
| MPPT Operating Voltage Range | 90 ~ 230 VDC |
| Maximum PV Array Open Circuit Voltage | 250 VDC |
| Maximum Solar Charge Current | 120A |
| Maximum AC Charge Current | 120A |
| Maximum Charge Current | 120A |
| PHYSICAL | |
| Dimension(D X W X H) | 5.8 x 17.0 x 21.8 in |
| Net Weight: | 40.6 lb |
| Communication Interface | USB/RS232/RS485/WiFi/Dry-contact |
| OPERATING ENVIRONMENT | |
| Humidity | 5% to 95% Relative Humidity (Non-condensing) |
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -15°C to 60°C |
| STANDARD | |
| Compliance Safety | UL |
| SKU | RS-M335 |
|---|---|
| Maximum Power(Pmax) | 335W |
| Maximum Power Voltage(Vmp | 34.1V |
| Maximum Power Current(Imp) | 9.85A |
| Open Circuit Voltage(Voc) | 41.6V |
| Short Circuit Current(Isc) | 10.4A |
| Maximum System Voltage(Vmax) | 1000VDC |
| Temperature Range | -40°F ~ 194°F |
| Max Series Fuse Rating | 20A |
| Weight | 39.3 lb |
| Dimensions | 65.6 x 39.4 x 1.4 in |
| Electrical Specifications | |
|---|---|
| Nominal Voltage | 48V |
| Nominal Capacity(at .5C, 77°F) | 100Ah |
| Minimum Capacity (at .5C, 77°F) | 95Ah |
| Expected Cycle Life | >6000 cycles w/1C charge and discharge rate, at 77°F, 80% DOD |
| Operating Specifications | |
| Charge Method | Smart charger, constant current, constant voltage |
| Operating Voltage | 48 V |
| Capacity | 100 Ah |
| Energy | 5000 Watt Hours |
| Charge Voltage Range (Max 52.5V) | 52.0 -52.5V |
| Continuous Charge Current | 5A |
| Continuous Discharge Current | 100A |
| Over Voltage Shutdown | 52.5 +/-0.2V |
| Discharge Cut-off Voltage | 42V =/- 0.5V |
| Self Discharge (stored at 50% SOC) | <3%/month |
| Waterproof | IP65 |
| Temperature Performance | |
| Charge Temperature | 32° F to 140° F |
| Discharge Temperature | -4° F to 140° F |
| Storage Temperature | -4° F to 140° F |
| BMS High Temperature Cut-off | 149°F |
| BMS Low Temperature Cut-off | 32°F |
| Physical Specifications | |
| Battery Dimensions | 23 1/4″L x 14 7/8″W x 6 1/8″H |
| Weight | 100 lb |
| Group Size | 15 |
| Battery post size | 5/16″ |
| BMS Operation | |
| Over Charge Protection | |
| Over charge detection voltage | 3.9 +/- 0.05V |
| Over charge detection delay time | 0.96 – 1.4s |
| Over charge release voltage | 3.80 +/-0.05V |
| Maximum charge voltage | 3.65 +/-0.05V |
| Over Discharge Protection | |
| Over discharge detection voltage | 2.0V +/- 0.05V |
| Over discharge detection delay time | 115-173ms |
| Over discharge release voltage | 2.3V +/- 0.10V |
| Over Current Protection Over current detection delay time |
9 +/- 2ms |
| Over current release condition | Cut load |
