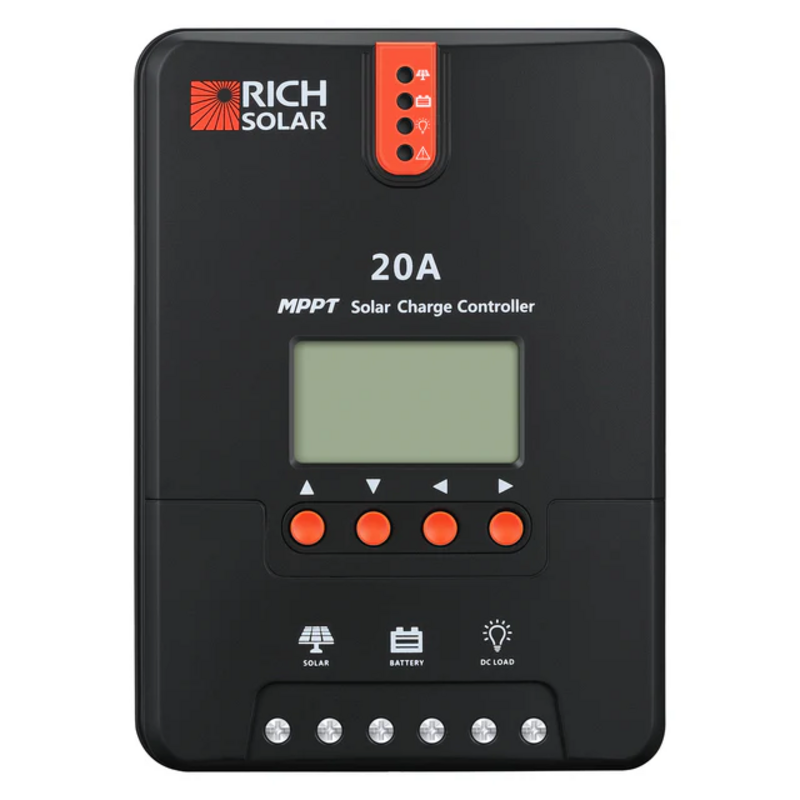

Rich Solar | 20 Amp MPPT Charge Controller | High Efficiency

Rich Solar | 20 Amp MPPT Charge Controller | High Efficiency

by Rich Solar
$74.99
Get it between
-

Notify me when back in stock

Free Shipping

On All Products

Easy 30 Day Returns

Return with Ease

Secure Checkout

Secure Payment


At Crisis Comforts, we are committed to providing you with the best prices online. If you find a lower price for the same product, we guarantee to match or beat that price.

How it Works:

1. Eligibility: This guarantee applies to select products in our store.

2. Contact Us: Reach out to us via email or chat with your price match request.

3. Proof Required: Please provide a screenshot, link, or any other evidence of the lower price
before making your purchase.

For full details, refer to our Price Match Policy Rules.

At Crisis Comforts, we take pride in offering the best refund and return policies in the industry. If you're not satisfied with your purchase for any reason, you may return it to us within 30 days for a refund.

How it Works:

1. Initiate a Return: If there are any issues with your order, such as missing components, damages, or a non-functioning product, please contact us as soon as possible.

2. Troubleshooting: Some issues can be resolved by reviewing the product manual or our product FAQs.

3. Contact Us: Reach out via email or chat for assistance.

For full details, refer to our Refunds & Return Policy.

Order Processing

Once we receive your order, we will send you a confirmation email. We will then process your order by confirming that the product is in stock and ready for shipment. If any of the items in your order are back-ordered, we will reach out to you via email or phone, and you may choose to either wait or receive a 100% refund.

Please allow 1-3 days for processing your order.

Shipping

Shipping times and methods will depend on the specific product and brand you purchase. If you have any shipping questions, feel free to ask on the chat or email us at info@crisiscomforts.com.

We will send tracking information by email the same day the shipping tracking number is created/available.

Before you sign the shipping bill, please THOROUGHLY INSPECT YOUR ITEM. Signing for the receipt of a damaged product removes the liability of the shipping company and Crisis Comforts. Once you accept your shipment as non-damaged, your item is your property.

Delivery Time

Shipping Timeline listed above is an estimate. Please call or message the web chat for precise ETAs.

Boost Your Solar Power Efficiency with Rich Solar’s 20 Amp MPPT Charge Controller

Take control of your solar power system with the Rich Solar 20 Amp MPPT Solar Charge Controller. Engineered for optimal performance, this advanced controller maximizes the efficiency of your solar panels, ensuring you get the most out of your renewable energy investment.



Key Features:

  • Maximum Power Point Tracking (MPPT): Utilizing sophisticated MPPT technology, this controller increases the efficiency of your solar panels by up to 30%, ensuring maximum power output and faster charging times.
  • High Efficiency: With a conversion efficiency of over 98%, this controller minimizes energy loss and maximizes battery charging, providing reliable power management.
  • Durable Design: Built to last, the charge controller features a robust and weather-resistant housing, making it perfect for various outdoor conditions.
  • LCD Display: An intuitive LCD screen displays real-time data, including charging current, battery voltage, and system status, allowing you to monitor and manage your solar power system with ease.
  • Multiple Protection Features: Equipped with comprehensive protection features, including overcharge, over-discharge, and short-circuit protection, ensuring the safety and longevity of your solar system components.
  • Versatile Compatibility: Compatible with various battery types, including sealed, gel, and flooded batteries, making it a versatile choice for different solar power setups.

Specifications:

  • Rated Charging Current: 20A
  • Maximum PV Input Voltage: 100V
  • Battery Voltage: 12V/24V Auto Recognize
  • Efficiency: ≥98%
  • Operating Temperature Range: -35°C to +45°C
  • Dimensions: 8.5 x 4.5 x 2.5 inches
  • Weight: 1.5 lbs





Why Choose Rich Solar’s MPPT Charge Controller?

Enhance your solar power system's performance with the Rich Solar 20 Amp MPPT Solar Charge Controller. Designed for efficiency and reliability, this controller ensures you harness the full potential of your solar panels, delivering clean and sustainable energy to your home, RV, or off-grid setup.

-Model: 20 Amp MPPT Solar Charge Controller

-Rated Charge Current: 20 Amps

-System Voltage: 12V/24V Auto Recognition

-Maximum PV Input Voltage: 100VDC

-MPPT Efficiency: Up to 99%

-Display: LCD Screen with real-time monitoring

-Battery Compatibility: Lithium, AGM, Gel, Flooded

-Operating Temperature: -20°C to +45°C (-4°F to 113°F)

-Dimensions: 6.7 x 4.6 x 2.1 inches

-Weight: 1.3 lbs

-Protection Features: Overcharging, over-discharging, overload, and short circuit protection

1. Mount the Controller: Choose a well-ventilated location away from direct sunlight and moisture. Securely mount the controller using appropriate screws or brackets.

2. Connect the Battery: Connect the battery cables to the controller first, ensuring correct polarity (positive to positive, negative to negative). The controller will auto-detect the battery voltage.

3. Connect the Solar Panels: Attach the solar panel cables to the controller, again ensuring proper polarity. The LCD screen will display input voltage and current from the panels.

4. Connect the Load (if applicable): If using the controller to power a DC load, connect the load cables to the designated output terminals.

5. Power On and Configure: Turn on the controller and configure the settings based on your battery type. Refer to the user manual for specific programming instructions.

6. Monitor and Maintain: Regularly check the LCD for any alerts or performance metrics to ensure the system is running optimally.

Q: What types of batteries are compatible with this charge controller?
A: The Rich Solar 20 Amp MPPT Charge Controller is compatible with Lithium, AGM, Gel, and Flooded batteries.

Q: How much more efficient is MPPT technology compared to PWM?
A: MPPT technology can improve charging efficiency by up to 30%, maximizing the energy harvested from your solar panels.

Q: Can I use this controller in cold weather conditions?
A: Yes, the controller operates effectively in temperatures as low as -20°C (-4°F), making it suitable for various climates.

Q: Does the controller have built-in safety features?
A: Yes, it includes protections against overcharging, over-discharging, overloads, and short circuits to safeguard your system.

Q: Is the controller waterproof?
A: The controller is designed to be durable but is not fully waterproof. It should be installed in a dry, well-ventilated location.
