Fortress Power | eFlex 5.4 G2 | Lithium Battery | 5.4kWh, IP65, Wi-Fi Enabled
Fortress Power eFlex 5.4kWh LFP Battery - Compact, Efficient Energy Storage - Data Sheet / Manual

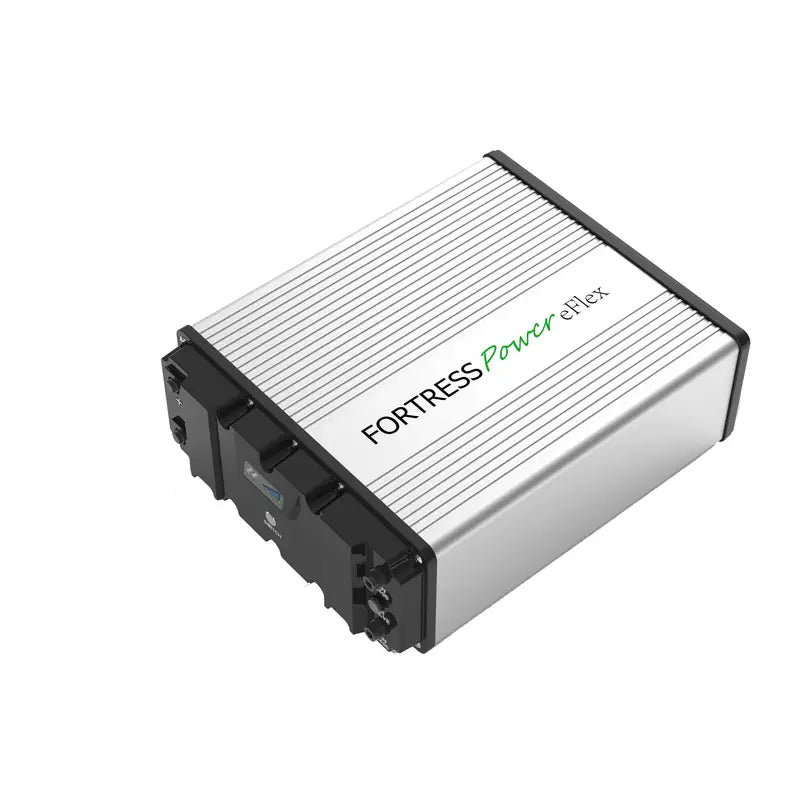

Unlock the potential of compact energy storage with the Fortress Power eFlex 5.4kWh LFP Battery, designed for versatility and endurance. Utilizing prismatic Lithium Iron Phosphate cells, this scalable solution stands at the forefront of battery safety and energy density. Its advanced digital processor Battery Management System (BMS) not only safeguards your power supply through high amperage contactor disconnects but also maintains your system with precision via individual cell voltage and temperature monitoring, ensuring balanced cell health for extended battery life.
With cutting-edge communication technologies like Canbus, Modbus, and Wi-Fi, the eFlex integrates seamlessly into the internet-of-things, offering smart, real-time insights into your energy usage. Housed in an IP65-rated case, this battery is impervious to water spray and dust, suitable for a variety of environments from renewable energy systems to marine and mobile applications.
Whether wall-mounted, floor-mounted, or server rack-mounted, the eFlex provides the flexibility you need for optimal space management. Boasting a 98% round-trip efficiency and monitored by a state-of-the-art BMS, the eFlex is not just an energy solution—it's an investment in sustainable, reliable power. NRTL certification to UL9540 and UL9540a standards confirms its place as a trusted component in any energy system.
General | |
Name | eFlex 5.4 |
Total Energy(kWh) | 5.4 |
Max. Charge Current (Continuous) [A] | 100 |
Max. Discharge Current (Continuous) [A] | 60 |
Max. Pulse Current (for 5 sec) [A] | 130 |
Capacity [Ah] | 105 |
Voltage Range [V] | 48-55 |
Charging Temperature [F] | 32 to 113 |
Discharging Temperature [F] | 32 to 140 |
Storage Temperature [F] | 32 to 95 |
Dimension [L x W x H, inch] | 21.5 x 17.5 x 7.2 |
Weight [lbs] | 116 |
Life Cycles | 8000 @ 80% DoD |
Round Trip Efficiency | >98% |
