EndurEnergy | ESP-5100 & ESP-5K | Residential Battery | 5.12 kWh, UL-Compliant

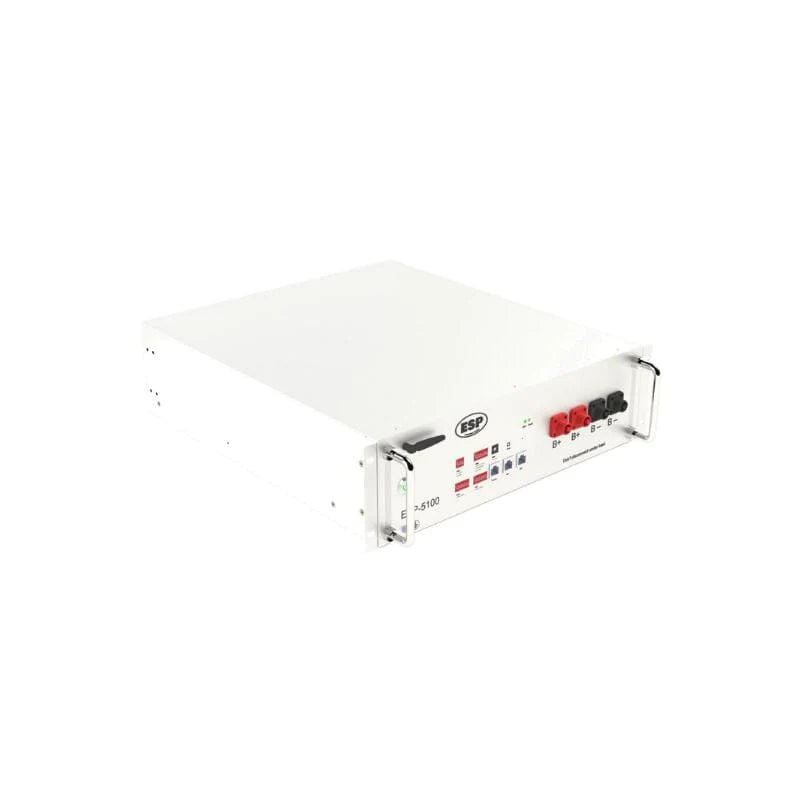

EndurEnergy ESP-5100 and ESP-5K Battery Pack | Residential 5.12 kWh DC Battery
Discover the future of secure home energy with EndurEnergy's ESP-5100, the ultimate EMP-hardened Residential Storage Solution. Our EverSure battery system, featuring high-performance batteries and an innovative Battery Management system, ensures power on demand. Crafted with Grade “A” new materials for extended durability, our rack-mount design is not only UL-compliant but also a sleek addition to your energy setup. Backed by a 10-year warranty, 24/7 remote monitoring, and dedicated US support, our integrated solutions pair EverSure batteries with Sol-Ark's state-of-the-art inverter technology for unmatched reliability. Choose the ESP-5100 for a sophisticated, integrated approach to residential energy storage and take control of your power destiny.
Specifications
- Model: ESP-5100
- Nominal Voltage: 51.2 V
- Working Voltage : 48 V - 57.6 V
- Nominal Battery Energy : 5.12 kWh
- Peak Power : 5 kW 3s
- Max. Battery Bank Size : 51.2 kWh per string (10 packs per string)
- Max. Battery System Capacity : 327.68 kWh per system (8 strings with 8 packs each)
- Recommended C rate : 0.5 C
- Round Trip Efficiency : 97%
- Recommended DoD : 90%
- Charge Temperature Range : 32 °F to 113 °F (0 °C to 45 °C)
- Discharge Temperature Range : 14 °F to 122°F (-10 °C to 50 °C)
- Life Cycles : 6000
- Protection Level : IP20
- Size L x W x H: 17.40 x 19.70 x 5.24 in (442 x 500 x 133 mm)
- Weight : 92.60 lb (42.00 kg)
- Battery Type : Lithium Iron Phosphate (LFP)
- Warranty : 10-Year
- Compliance : UL9540, UL1973, CEC and SGIP pending
